40 watt offshore oil rig led explosion proof lights
1 Parameter
| Items DL618 | Unit Value |
| Light Source | LED | CREE XT-E/ CREE XM-L |
| Luminous Flux | 3200/7500 lumens |
| Color Temperature | 5700-6000K |
| Color Rendering Index | Ra>80 |
| power | 40 watt/ 80 watt |
| Input Voltage | AC 110-240V |
| Housing Material | Die cast aluminum housing with tempered glass |
| Dimension | ø117X151X910 mm |
| Weight | 8 kg |
| Working Temperature | -20°C ~+ 50°C |
| Beam angle | 180° |
| Corrosion protection Classification | WF2 |
| IP Classification | IP66 |
| EX Mark | Ex d ⅡB+H2 T5 Gb / Ex tD 21 T95℃ |
| Total harmonic current | <15% |
| Factor | >0.95 |
| Mounting Angle | 360° |
1) Lighting Distribution Curve: (Unit cd)
2) Lux Distance Curve
2 Product Details:
3 Three Kind of mounting Way:
4 Application Area:
DL618 series LED Explosion Proof Floodlight is applicable for zone I and zone II , or gas area,restricted area or heavy industrial processing equipment area, drilling platform and other coastal or offshore dangerous areas, Such as port, ship, oil, petrochemical, oil depot.
5 Dimension and Package (unit: mm):

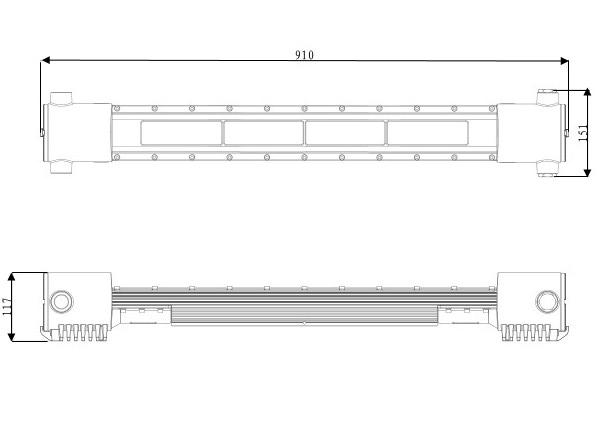

1) DL618 dimension: 910*151*117(figure 1)
2) Package size: 960*225*210 (figure 2)
Note:
1. Don' t put the light into the eyes directly to protect from vision loss
2. No breaking, disassembling or throwing the light into fire
3. Prohibit to open the housing when the light is power on
4. None technical persons are not allowed to install and disassembly the light
5. Please pay attention to protect the thread from gouges and scratches when maintenance and please replace the seal ring in time if it is damaged, and tighten the screw to ensure the explosion proof and protective performance
6. Restoring the seal ring to its original place and lid the cavity tightenly after replacing the internal components
7. Not allowed to replace the light' s original components and internal structure so as not to decrease explosion
proof performance
8. Well grounded both internal and external
9. Cable sealing joint should meet following technical requirements (M25* 1.5mm)
Ex Mark: ExdIB+H2 T5 Gb
IP grade: IP66
Corrosion proof grade: WF2
